Handy Size Visibility Sensor

Applications
Features
Specifications
Using Handy Size Visibility Sensor
Wiring Information

With our Handy Size Visibility Sensor, visibility*1 measurement under various atmospheric conditions, -such as fogs, rains, snows, is possible.

When a visibility disturbance are caused by a blizzard or a heavy rain, poor visual field can lead to hazards in some situations, for instance in driving, or in working out-door.
With our light, cost-friendly Handy Size Visibility Sensor, visibility status can be measured and monitored easily.
*1 outlook in a horizontal direction

Fog Monitoring in Beppu, Oita, JAPAN

Time-lapse with our Handy Size Visibility Sensor(miniBSV) and a web camera.

(Provided by : Prof. Yukitaka Ohashi,
Department of Biosphere-Geosphere Science, Faculty of Biosphere-Geosphere Science, Okayama University of Science)

Real-time visibility and live-camera image of Sapporo, Hokkaido, JAPAN

Visibility information by our Handy Size Visibility Sensor(miniBSV) installed in Sapporo and live-camera image of the observation spot.

(Cooperation : 株式会社M.C.S)

Handy Size Visibility Sensor(miniBSV) basic specifications

Measuring method : backscattering, Visibility range : 20m…4km, Data output : 30-seconds measurement every 10 min.

Applications

Freeway

・ Poor visibility alert, warning system
・ luminance adjustment of lights and traffic information signs

Handy Size Visibility Sensor_On-Construction image

Construction Site

・ Support in making operation-cease/halt decision under poor visibility in thick fogs, blizzards.
・ warning system

On-Vehicle

・Evaluation of impact by environmental conditions(fogs, rains) on LiDAR and other sensors for Self-Driving vehicles

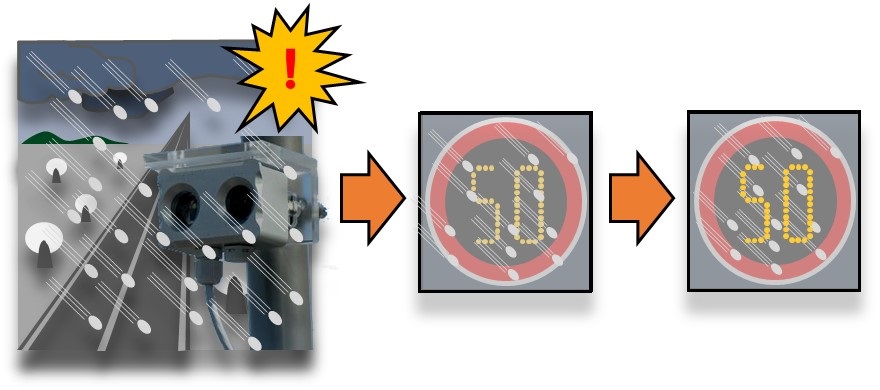

【Image for luminance adjustment of traffic information signs】

When poor visibility is detected by the sensor…	Brightness will be…	Adjusted!

Simple meteorological observation
Thick fog warning, traffic related alarms
Distinguishing between good and bad visual view on roads
Remote monitoring of visibility in mountain area

Features

24/7/365 remote monitoring is possible
Light-weight, small-sized, compact design
Robust design for outdoor installation

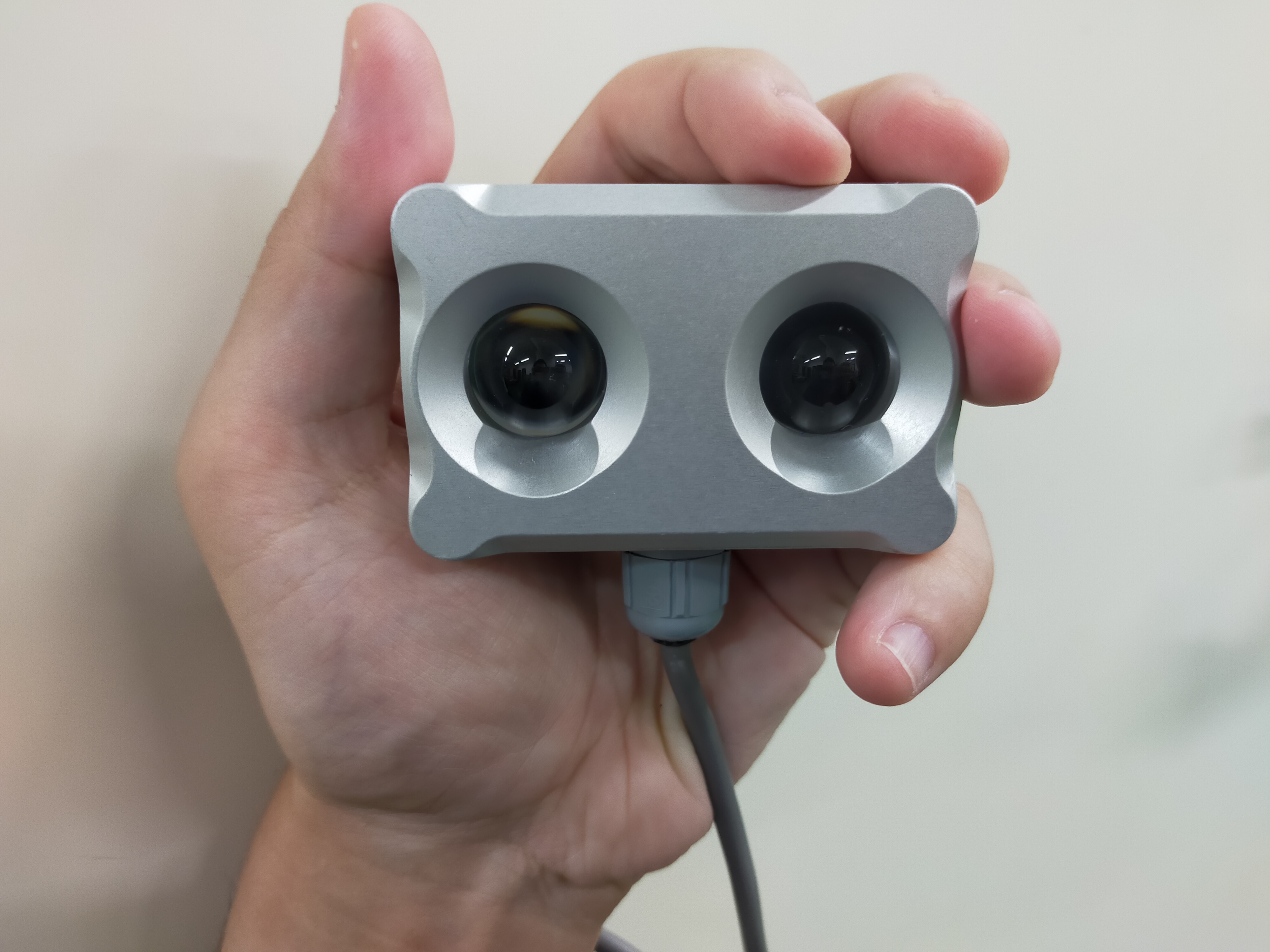

Handy Size Visibility Sensor_product image

Specifications

Handy Size Visibility Sensor <3 models>

MiniBSV(Standard)・・・Calculating visibility by optical measurement method
MiniBSV 10K・・・MiniBSV with extended visibility calculation range, 10m…10km
MiniBSV FAST(for blizzard)・・・For indoor installation. Measurement area and measurement time are improved from outdoor models

Visibility is easily measured with Handy Size Visibility Sensor just by connecting to a PC. The product is ideal both for stationary use and for mobile use, as it is compact and light-weight, and its measurement data can be stored in your computer
The product is compact, cost-friendly, and easily incorporated. This allows it to excellently play a part as a sensor in constructing systems for fog detection, blizzard detection, heavy rain detection and so on.

The product irradiates light to a front space and detects with its sensor the backscattering light from backscattering particles(f.e. fogs) nearby, then calculate visibility. Thus, no obstacles around the product is prerequisite.

	MiniBSV (Standard)	MiniBSV 10K	MiniBSV FAST (for blizzard)
Measurement method	backscattering
Visibility calculation range	20m～4km	10m～10km	2m～1km
Data output interval	30 sec		1 sec
Light source wavelength	850nm
Light source output	LED Class 1M
Size (LxWxH)	68x34x45 mm
Weight	Approx. 170g
Operational temperature	-20 ～ +50 ℃
Power supply	DC12V
Power consumption	≤50mA
Data output	RS232 Digital output (Please consult for analog output 0-5V)
Manuals	MiniBSV_Manual（English-Version）ver1.2	MiniBSV10K_Manual(English-Version) ver1.4	MiniBSVFAST_Manual(English-Version) ver1.1
Inventory Sales	〇	〇	〇

* Specifications are subject to change without notice.

Using Handy Size Visibility Sensor

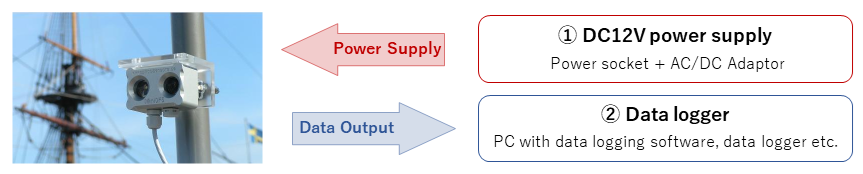

To start using Handy Size Visibility Sensor, the following two instruments will be necessary.

① DC12V power supply

② Data logger

necessary-equipment-for-using-Handy-Size-Visibility-Sensor image

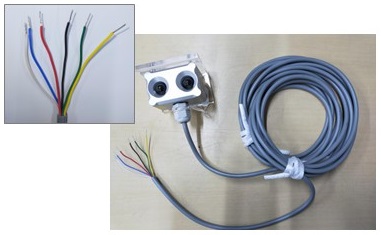

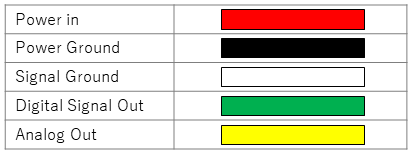

Wiring Information

Handy-Size-Visibility-Sensor-Wiring-image

Handy-Size-Visibility-Sensor-Wiring-info
