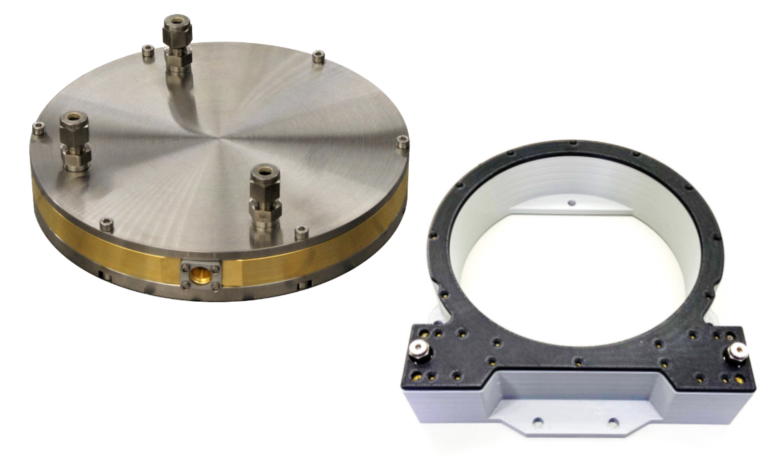

赤外レーザ用 小型・長光路ガスセル

「微量ガス測定」「同位体分析」など、赤外レーザを用いたガス分析に

● 低容量(9mL/5m、31mL/4m、128 mL/15m )
● 近赤外~遠赤外対応
● 堅牢な設計
● 容易なアライメント
● イン/アウト別のビームポート

カタログダウンロード

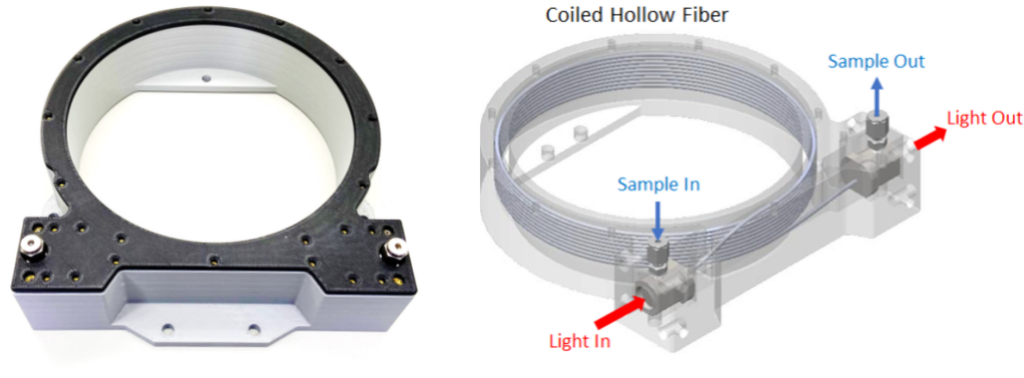

中空導波管ガスセル Omega™

中空導波管を利用した堅牢でコンパクトなガスセルで、標準のパス長は5mです。

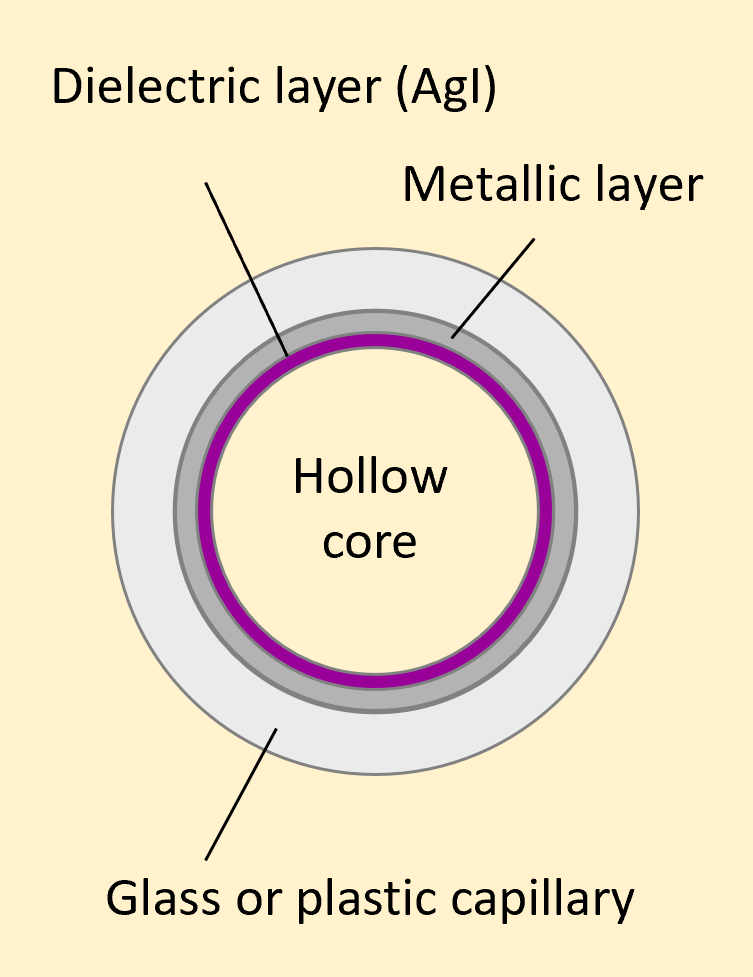

内側に反射コーティングを施したファイバ内でビームとサンプルが重なり合い、体積あたりのパス長が非常に長い点が特長です。

ベンチ用の固定穴付き、ビームのイン/アウト部分は30 mmケージシステム対応です。

その他、お持ちの中空導波管をガスセル化できるアクセサリもございます。





  • Omega™(5m / 8.8L モデル



STANDARD CONFIGURATION

Wavelength Range

3 – 12 µm

Internal Bore Diameter

1.5 mm

Path Length

5 m

Sample Volume

8.8 mL

Coupling Efficiency

> 95%

Optical Transmission

> 10%

Output Divergence ½ Angle

30 mRad

Operating Pressure

0.01 – 1.0 Atm

Wetted parts

Stainless steel Silver-Iodide

Gas connection

1/8″ Swagelok



  • カスタム対応



VARIATIONS

Internal Bore Diameter

200 – 1500 µm

Path Length

0.3 – 5.0 m

Sample Volume

0.03 – 9 mL

Wavelength ranges using AR-coated wedged windows

SWIR-AR: 1.65 – 3 µm

MWIR-AR: 3 – 5 µm

LWIR-AR: 7- 12 µm



※仕様は予告なく変更となる場合がございます。

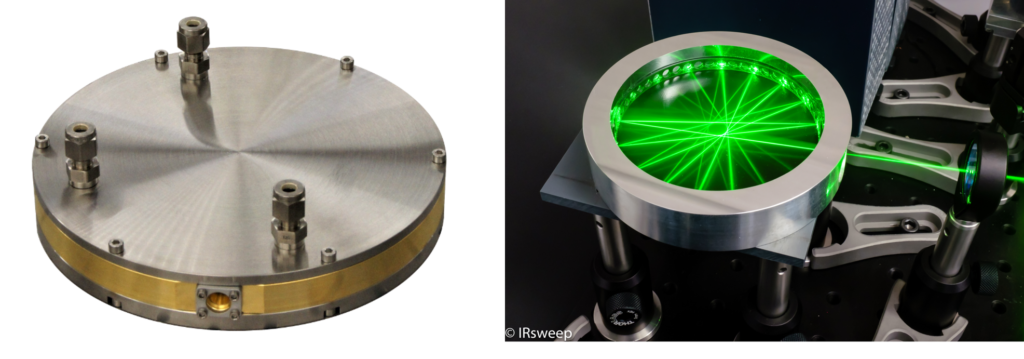

マルチパスセル IRcell-S(4m/15m)

小容量で堅牢なマルチパスセルで、標準のパス長は4mと15mです。

セルには標準で3つのガスポートが付属しており、通常はガス入口、出口、圧力センサとして使用されます。

また、ガス流路の一部としてセルを通過するガスを直接測定することも可能です。

IRcell-Sは、平面的な星形のビームパターンを使用しているため特に体積が小さく、ホワイトセルやヘリオットセル等に比べ、体積あたりのパス長が非常に長い点が特長です。

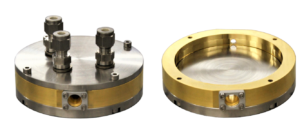

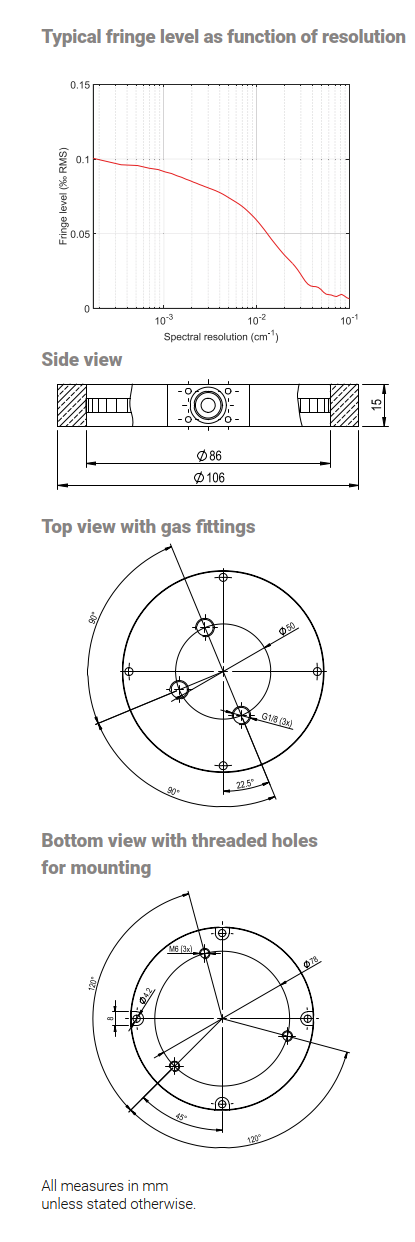

  • IRcell-S4(4m / 31L モデル)

SYSTESPECIFICATION

Optical path length

403 cm / 159”

Angle between in-coupling and out-coupling aperture

172.5°

Angle between aperture normal and coupling angle

3.75° horizontal
0° vertical

Beam alignment tolerance

±0.75° horizontal
±0.75° vertical

Angle between in-coupling and out-coupling beam

165°

Ideal numerical aperture (NA)

Collimated beam

Input hole diameter

5 mm / 0.197“, circular

Fringe level

< 2.0 x 10-4 rms@ λ=4.3 μm

Wavelength range

NIR / mid-IR / THz

Gas volume

31 ml

Gas fittings

Swagelok 6 mm or 1/4‘‘ or Whitworth G 1/8‘‘

Absolute pressure range

0-1 bar / 0-750 torr

Leak rate

< 1 x 10-7 bar x l/s

Mirror surface

Gold

O-Ring material

Standard: NBR
Optional: FKM and EPDM

Window material options

BaF2 , CaF2 , Al2O3 , N-BK7, ZnSe, Others on request

Dimensions

10.6 cm diameter, 3.2 cm height (excluding gas connectors)

Mounting

3 x M6

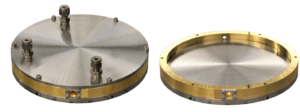

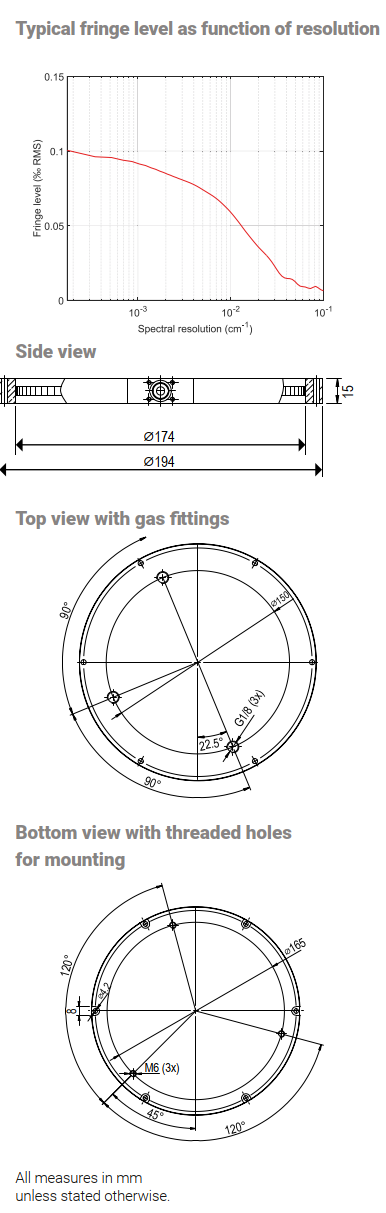

  • IRcell-S4(15m / 128mL モデル)

SYSTESPECIFICATION

Optical path length

1512 cm / 595”

Angle between in-coupling and out-coupling aperture

175.9°

Angle between aperture normal and coupling angle

2.05° horizontal
0° vertical

Beam alignment tolerance

±0.5° horizontal
±0.5° vertical

Angle between in-coupling and out-coupling beam

171.8°

Ideal numerical aperture (NA)

Collimated beam

Input hole diameter

5 mm / 0.197“, circular

Fringe level

< 3.0 x 10-4 rms@ λ=4.3 μm

Wavelength range

NIR / mid-IR / THz

Gas volume

128 ml

Gas fittings

Swagelok 6 mm or 1/4‘‘ or
Whitworth G 1/8‘‘

Absolute pressure range

0-1 bar / 0-750 torr

Leak rate

< 1 x 10-7 bar x l/s

Mirror surface

Gold

O-Ring material

Standard: NBR
Optional: FKM and EPDM

Window material options

BaF2 , CaF2 , Al2O3 , N-BK7, ZnSe, Others on request

Dimensions

19.4 cm diameter, 3.2 cm height (excluding gas connectors)

Mounting

3 x M6



※仕様は予告なく変更となる場合がございます。
